Home & Building Automation

Bus Cable for intelligent integrated building control lighting, heating, air-conditioning, ventilation, energy management, blinds, time management and locking systems.

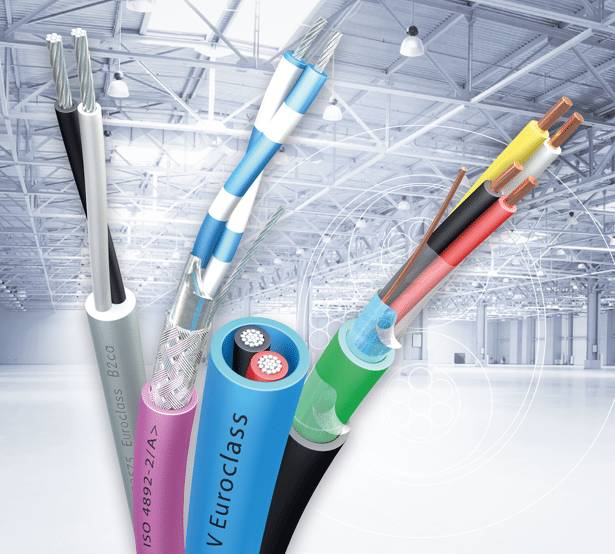

Belcom Building automation cables are used to build intelligent integrated building control solutions for domestic and commercial applications. As a result, owners, residents, or managers of these properties have control over the everyday working or living environment. This can cover all building services such as lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signalling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control and white goods

Bringing the cables professionals use to your home

Modern web enabled homes now have a myriad of automation accessories available to them, mostly accessible from smart phones with world wide access. You can answer the front door whilst on your summer holiday and you can ramp up the heating 24 hours before returning from your winter ski trip in the Alps, all through your phone and the web.

Belcom have teamed up with the major home and building automation systems to provide fully approved automation systems cable for Ethernet, CCTV, Audio /Video, and device actuator systems giving system lifetime reliability.

HDBaseT LAN

About HDBaseT Technology

HDBaseT is a connectivity standard for residential and commercial distribution of uncompressed HD multimedia content. The cornerstone of HDBaseT technology is 5Play, a feature set that converges uncompressed full HD digital video, audio, 100BaseT Ethernet, power over cable and various control signals through a single LAN cable. Learn more about the ins and outs of HDBaseT.


Multimedia , Speciality Lighting & Blind Control

Hybrid data ,communications and control cables work with speciality lighting and window shade systems for efficient control of natural and artificial light . These systems allow custom configuration by the owner to create their own lighting settings for daily activities.



5000182434” for use with Lutron *GRAFIK EYE™ 3000, 4000, 5000, 6000 systems and Crestron touchpanels, keypads, expansion modules and tuners with the added benefit of using LSZH FireFighter® sheath. The data cable is compliant with DMX512 digital & analogue as well as RS-422, RS-485 applications. For longer wiring distances (maximum 600m without repeater) use 500012221834 which incorporates a 12awg for power , 22awg 110 ohm signal (DMX , data , digital & analogue audio) and one 18awg sense wire which connects to terminal 5 of the circuit selectors in *GRAFIK EYE™ dimming or switching panels and allows the system to be set up for emergency lighting applications.


5000162224 for use with Lutron’s Sivoia Shading/Blind control systems work with automated window blinds has 16awg for power , 22awg 110 ohm (data & signal )

*Sivoia™ is a trade mark of Lutron Electronics Inc.

*GRAFIK EYE™ is a trade mark of Lutron Electronics Inc.

EIB/KNX

KNX Certification is an approved International Standard (ISO/IEC 14543-3), European Standard (CENELEC EN 50090 and CEN EN 13321-1) and Chinese Standard (GB/T 20965). KNX future proofed products are guaranteed in their interworking and the world’s only certification for the control in both commercial and residential buildings.

KNX/EIB Bus Cable LSZH for intelligent integrated building control lighting, heating, air-conditioning, ventilation, energy management, blinds, time management and locking systems.

KNX products are used to build intelligent integrated building control solutions for domestic and commercial applications. As a result, owners, residents, or managers of these properties have control over the everyday working or living environment. This can cover all building services such as lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signalling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control and white goods.

LON Works™

LonWorks® (Local Operating Network) The Lon platform was created by Echelon Corporation in 1988 , since then it has become the world’s leading technology for networking building services devices . Lon is an international standard “Control Network” protocol (ISO 14908) as well as an American, Chinese and European standard for open data communication in building automation, controls & building management. Lon can be networked over twisted pair , power lines , fibre optic or RF.

Lon is supported worldwide by more than 4,000 companies representing 80% of the building controls market with more than 100,000,000 devices installed globally in a variety of sectors including motorway lighting, building lighting control, HVAC systems, , security systems, fire detection and many more.

Lon open protocol technology frees clients from reliance on a single source of supply , they can select the best lighting controls , detectors , HVAC and access –control units leaving them confidant that they will have seamless integration with other building services systems.

Technically Lon is superior to other protocols on the market. Lon is eight times faster than KNX (EIB) – Lon’s 78,000 bits per second (bps) compares to KNX’s 9,600 bps – and incorporates acknowledgement handshakes which are not generated by KNX devices. Lon technology enables an entire system database to be created by reading back from the network devices – a feature not offered by any other technology. Coupled with distributed intelligence which guarantees no single point of failure, it is no surprise that Lon is the technology of choice for large, integrated projects where accurate, high-speed communication is important

C.O/M.E.T Colour Coded Lighting Control BUS

These FireFighter® Lighting Control BUS are intended for communication between the lighting distribution board ,lighting control modules and luminaire plug wiring. The system utilises DALI BUS as the platform when installing the O-BUS/M-BUS cables . For additional information on DALI or to see versions for extended distance please visit our DALI page.


Features

• Colour coded sheath colours for ease of identification between lighting control wiring and DALI BUS installation

• Flame retardant acc. to IEC 60332-1

• Low Smoke Zero Halogen

• 600 V rating

HART

HART (Highway Addressable Remote Transducer Protocol)

The Hart Communication protocol was originally a digital industrial automation protocol , an early implementation of fieldbus . This system is still one of the most popular industrial protocols today . Belcom’s 430Series has been designed around the HART system and has been adopted by many Belcom customers as a digital lighting control BUS , this cable range follows the same parameters as BACnet and may also be used for this platform.



The protocol was developed by Rosemount Inc. a subsidiary of Emerson Electric Company as an early communication standard in the 1980’s later in that decade evolving into HART as an open protocol for their smart field instruments.

DALI

DALI (Digital Addressable Lighting Interface ) is an international standard communication protocol (IEC 62386) , a global standard for dimming and digital lighting control. DALI is an open non-proprietary standard that makes genuine freely addressable lighting control a reality . DALI is very easy to install, extremely versatile and a much more cost-effective solution than many lighting control systems already on the market, despite its greater functionality.

Innovative DALI lighting solutions can be now be perfectly integrated in modern building control systems (BCS). Special gateways act as “translators” between building control systems (BCS) and DALI. They ensure that all the benefits of DALI can also be used in building management .

Recommended minimum Dali cable conductor size and cable run lengths are as follows:

Up to 100 metres: 20awg

Up to 150 metres: 18awg

Up to 200 metres: 16awg

Up to 300 metres: 14awg (more than 300 meters: not recommended – avoid runs over 300 meters)

Lighting Control LSZH Multicore
Installation Speaker (Home Theatre Sound)

Installation Speaker cables 500Series LSZH FireFighter®

Belcom ‘500 Series’ are high performance installation speaker cables with the added bonus of an LSZH FireFighter® rated outer sheath. They are designed to deliver good levels of performance in most multi-room and home cinema installations.

BEMS/BMS/HVAC Control Cables – Suitable for TREND System use

These standard FireFighter® cables have been modified for Trend system use , they have the usual FireFighter® 600v tray cable rating as well as a special UV stable LSZH sheath according to < ISO 4892-2/A> .

Features

• Violet sheath for ease of identification

• Flame retardant acc. to IEC 60332-1

• Halogen Free

• 600 V rating

• UV Stable Acc to ISO 4892-2/A
